COIL SLITTING CENTER

Coil slitting Center Therma FM s.r.o. based in Pržno near Frýdlant nad Ostravicí is equipped with dividing lines for longitudinal and transverse division of steel coils to dimensions according to customer requirements.
Service center Therma FM s.r.o. has an established management system quality according to EN ISO 9001:2015 standards. Certificate 9001 for DOWNLOAD.
youtube

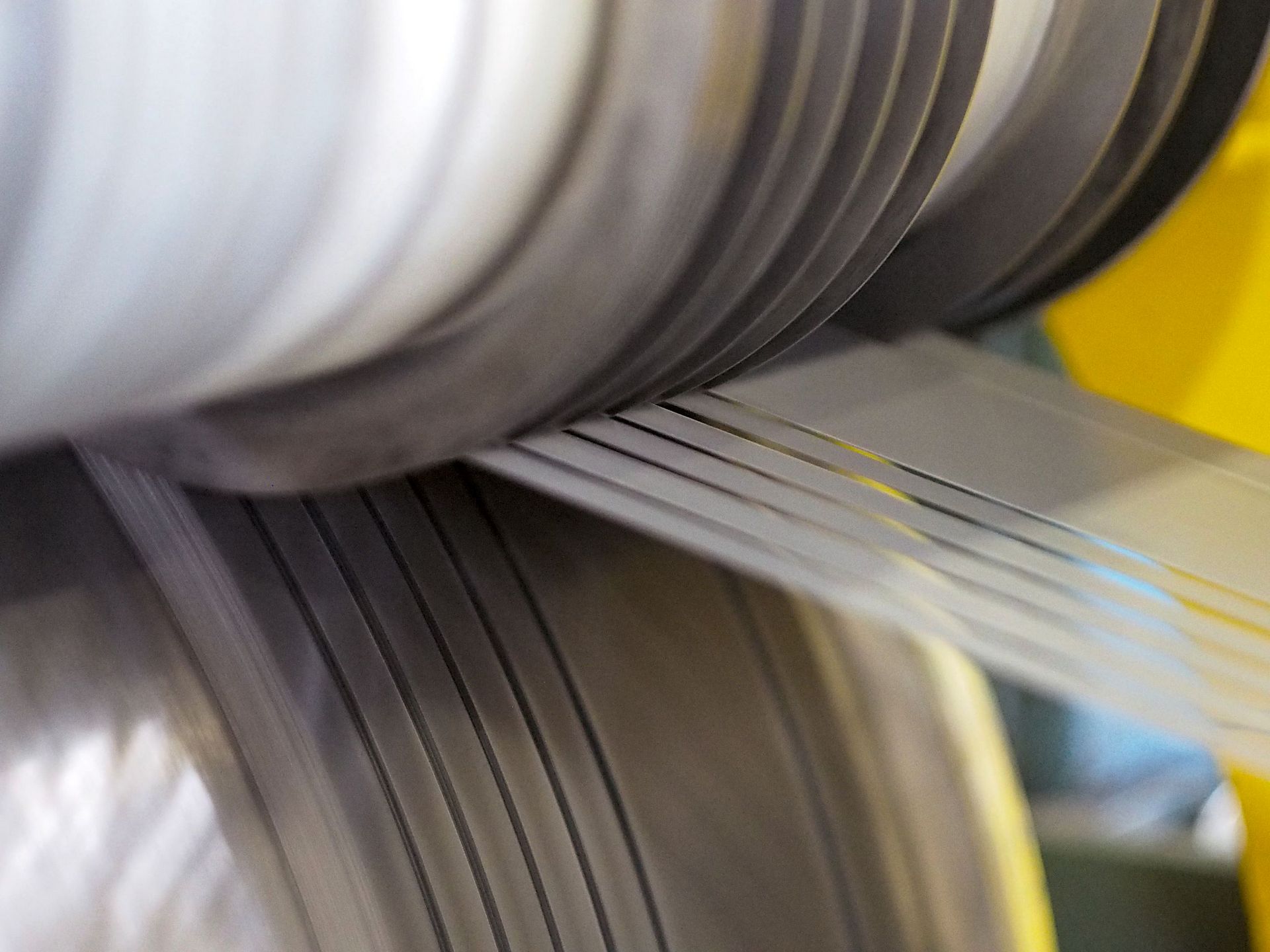

Longitudinal dividing line 0.20 – 0.80 x 1250mm

Input material: cold rolled steel, electrotechnical with coating, galvanized, corrosion resistant
LIMIT OF STRENGTH MIN. 150MPA MAX. 800MPA
WAIST WIDTH MIN 400mm MAX 1250 mm
WAIST THICKNESS MIN 0,20 mm MAX 0,80 mm
ENTRY SCROLL
https://www.toroid-unicore.com/coil-slitting-center/entry_scroll_0,20-0,80
INNER DIAMETER 500 mm
OUTER DIAMETER MAX 1250 mm
SCROLL WEIGHT MAX 7500 kg
EXIT SCROLL
INNER DIAMETER 500 mm
OUTER DIAMETER MAX 1250 mm
SCROLL WEIGHT MAX 7500 kg
TAPE WIDTH MIN 20 mm
ACCURACY OF THE WIDTH OF THE LONGITUDINAL CUT
THE WIDTH OF THE DIVISION OF INDIVIDUAL STRIPS 20 – 150 mm MAX +/- 0,008mm
THE WIDTH OF THE DIVISION OF INDIVIDUAL STRIPS OVER 150 mm MAX +/- 0,008mm
BURNER (NEEDLE) MAX 0,02 mm
The dimensional parameters of the divided tapes meet the requirements of the EN 10107 standard
CUTTING DIAGRAM
THICKNESS (mm) NUMBER OF CROSSES BETWEEN STRENGTH 500 MAX SPEED (m/min)
0,15 mm 23 80
0,5 mm 18 70
0,8 mm 15 60
In the subsequent packaging workplace, individual tapes they are sorted by width, taped and stored in a bundle on a pallet. There are scrolls protected against weather effects according to the customer's request (stretch film, anti-corrosion paper).

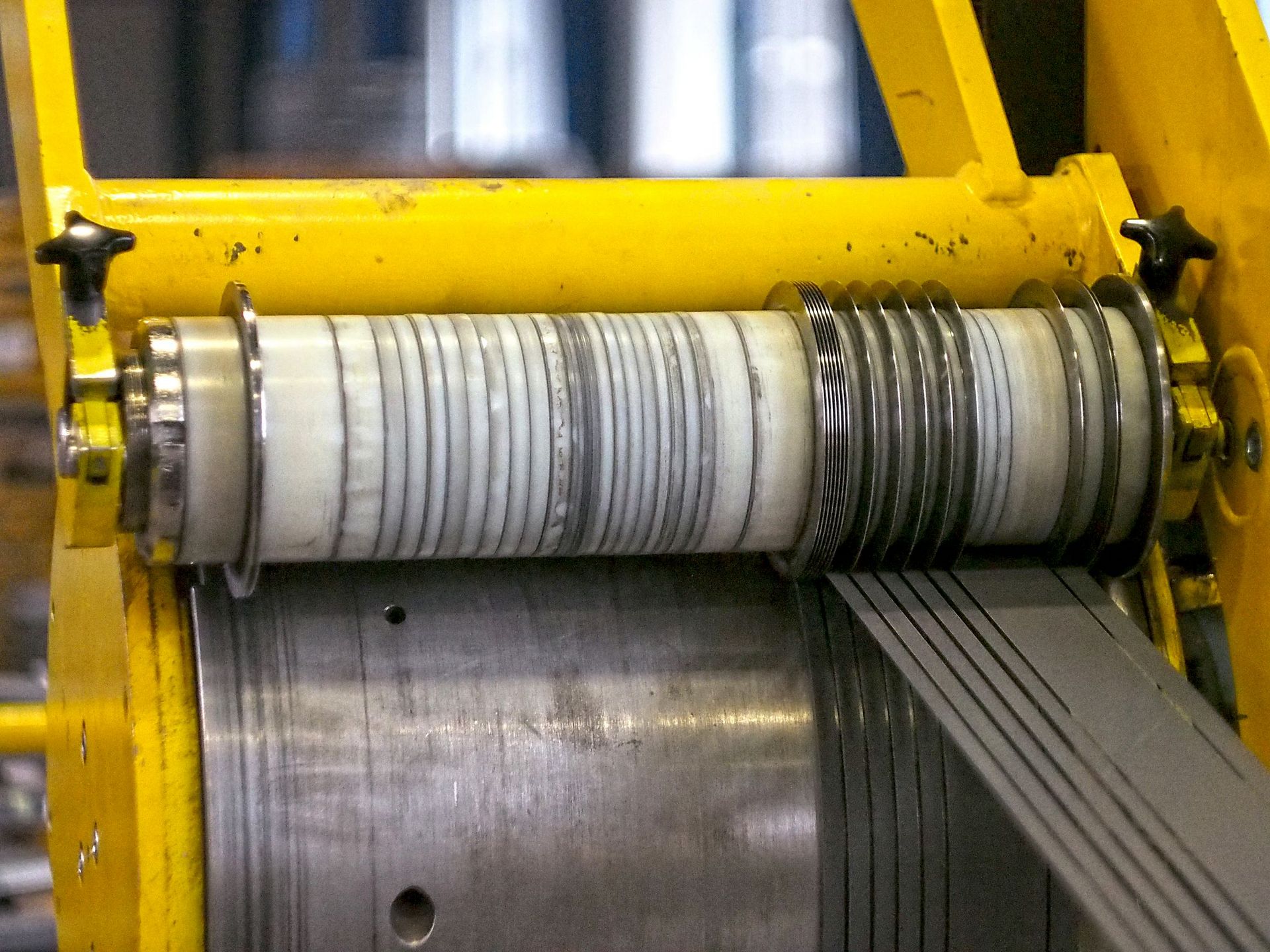

The working speed of the line is max 80m/min. For longitudinal division we use cutting edge blade knives that are made from cemented carbides (80% WC).
EXIT SCROLL

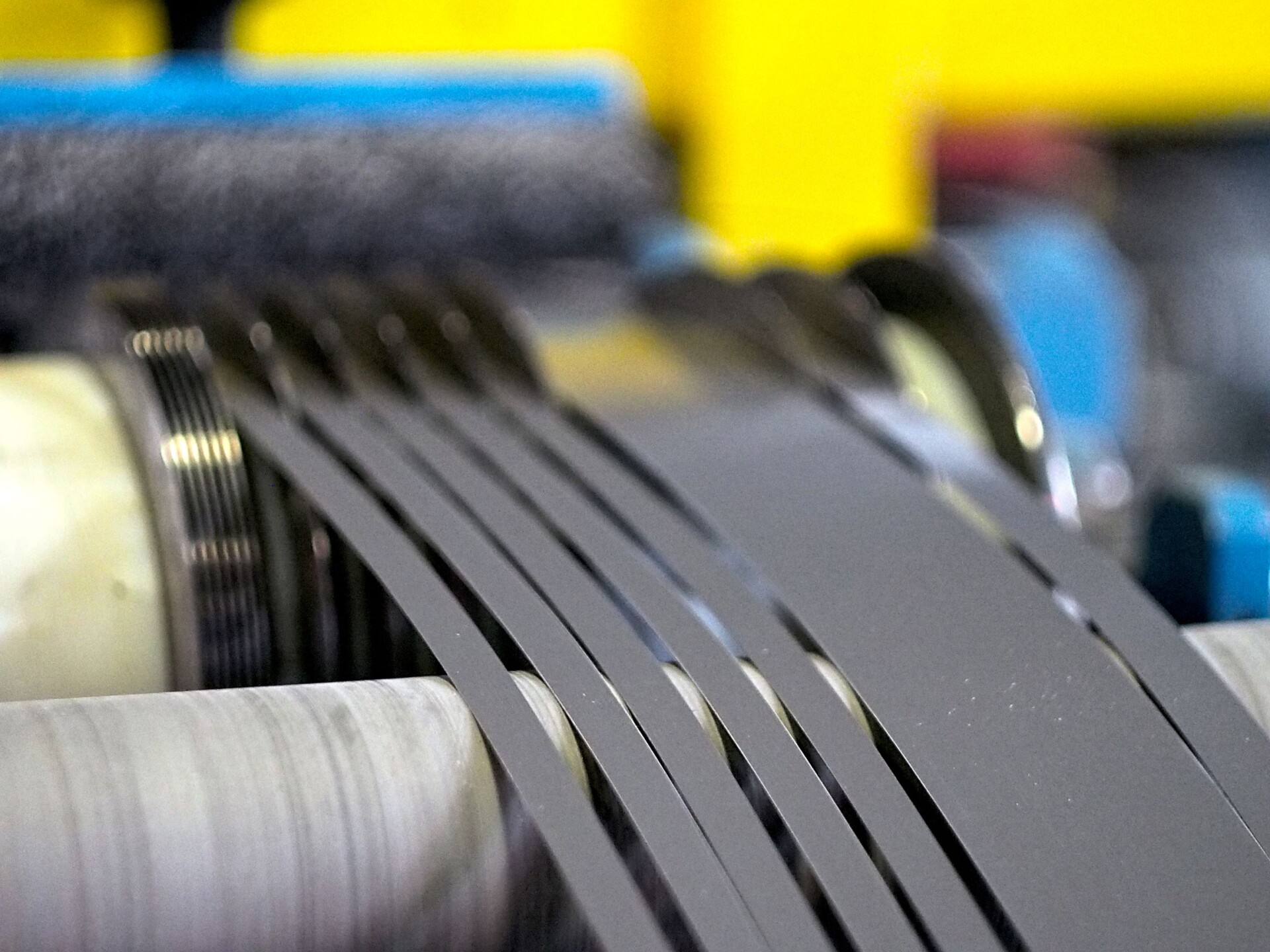

LONGITUDINAL DIVIDING LINE 0.15 - 0.80 x 420mm

Input material: cold-rolled steel, electrotechnical coated, galvanized, corrosion-resistant
LIMIT OF STRENGTH MIN. 150MPA MAX. 800MPA
WAIST WIDTH MIN 30 mm MAX 420 mm
WAIST THICKNESS MIN 0,15 mm MAX 0,80 mm
ENTRY SCROLL
https://www.toroid-unicore.com/coil-slitting-center/entry_scroll_0,15-0,80
INNER DIAMETER 500 mm
OUTER DIAMETER MAX 1200 mm
SCROLL WEIGHT MAX 2000 kg
EXIT SCROLL
INNER DIAMETER 500 mm
OUTER DIAMETER MAX 1250 mm
SCROLL WEIGHT MAX 2000 kg
TAPE WIDTH MIN 6 mm / MAX 400 mm
ACCURACY OF THE WIDTH OF THE LONGITUDINAL CUT
THE WIDTH OF THE DIVISION OF INDIVIDUAL STRIPS 6 – 150 MM MAX +/- 0,008mm
THE WIDTH OF THE DIVISION OF INDIVIDUAL STRIPS OVER 150MM MAX +/- 0,01mm
BURNER (NEEDLE) MAX 0,02 mm
The dimensional parameters of the divided tapes meet the requirements of the EN 10107 standard
CUTTING DIAGRAM
THICKNESS (mm) NUMBER OF CROSSES BETWEEN STRENGTH 500 MPa MAX SPEED (m/min)
0,15 mm 20 50
0,5 mm 17 45
0,8 mm 12 40
In the subsequent packaging workplace, individual tapes they are sorted by width, taped and stored in a bundle on a pallet. There are scrolls protected against weather effects according to the customer's request (stretch film, anti-corrosion paper).
The working speed of the line is max 50m/min. For longitudinal division we use top-of-the-line disc knives, which are made of cemented carbides (80% WC).

TRANSVERSE DIVIDING LINE SC - 300 0.15 x 300 mm

Input material: cold-rolled steel, electrotechnical coated, galvanized, corrosion-resistant
LIMIT OF STRENGTH MIN. 150MPA MAX. 800MPA
WAIST WIDTH MIN 20mm MAX 300 mm
WAIST THICKNESS MIN 0,15 mm MAX 0,50 mm
ENTRY SCROLL
INNER DIAMETER 500 mm
OUTER DIAMETER MAX 1000 mm
SCROLL WEIGHT MAX 1000 kg
EXIT SCROLL
LENGTH MIN 10mm / MAX 10000 mm
Length tolerance up to 30 mm +/- 0,1 mm
Length tolerance 31 – 120 mm +/- 0,15 mm
Length tolerance 121 – 400 mm +/- 0,2 mm
Length tolerance 401 – 1000 mm +/- 0,3 mm
Length tolerance 1001 – 2000 mm +/- 0,4 mm
https://www.toroid-unicore.com/coil-slitting-center/dividing-line
When cutting into boards, punching of circular holes can be ensured of different diameters (10 mm, 11 mm, 12 mm, 22 mm).
The cut boards are placed on a pallet, taped and wrap in anti-corrosion paper at Coil slitting Center.
